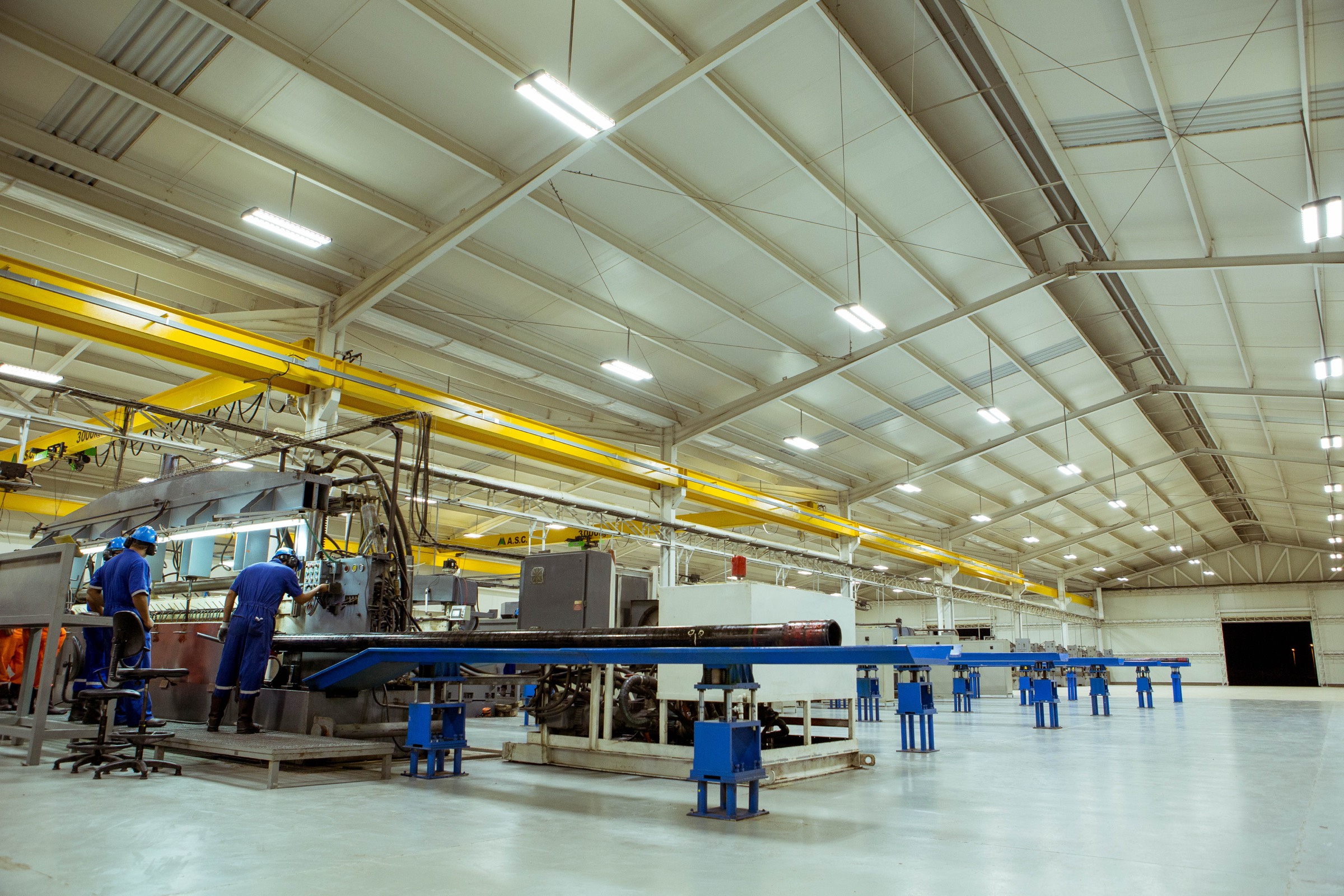

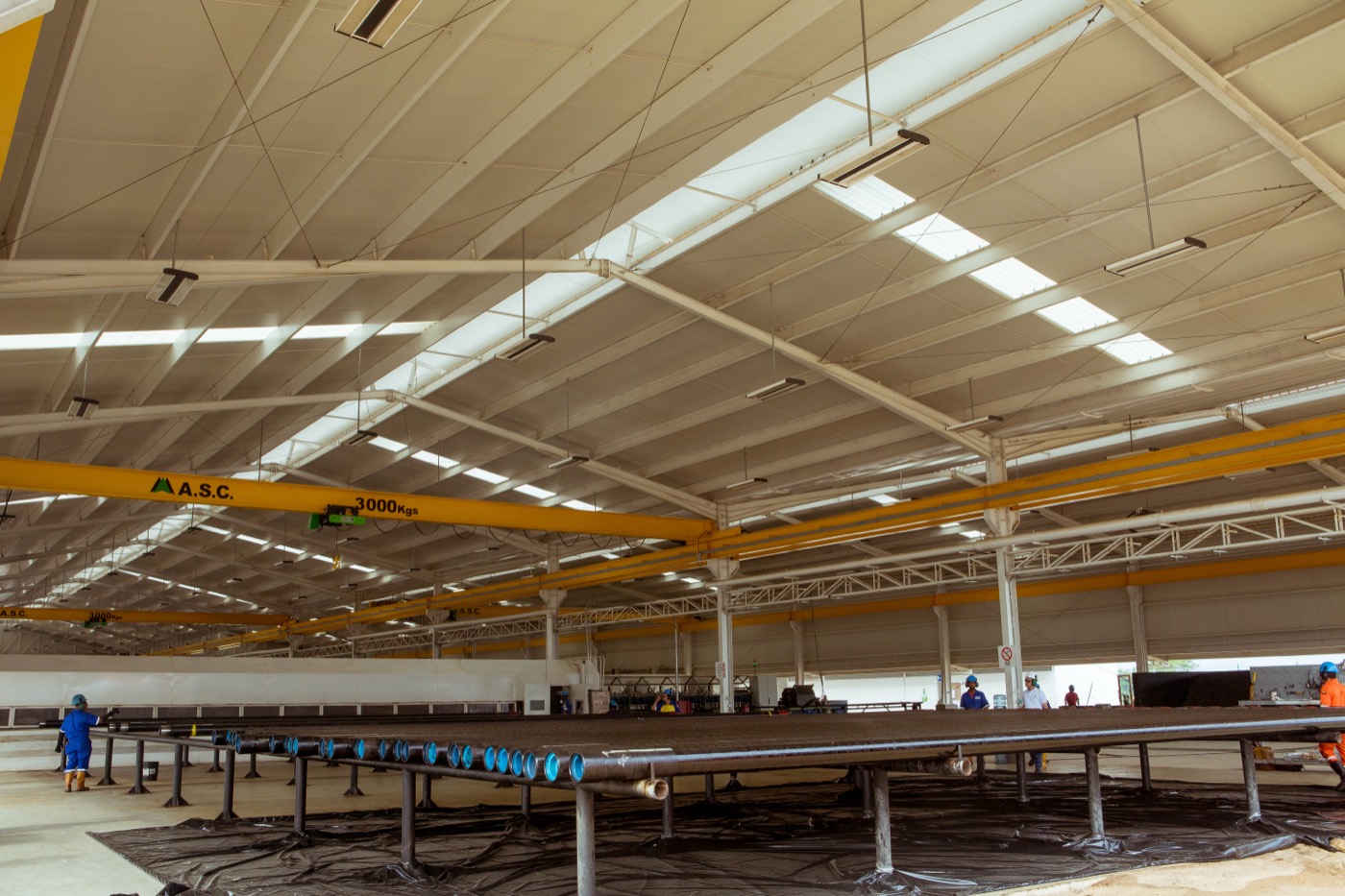

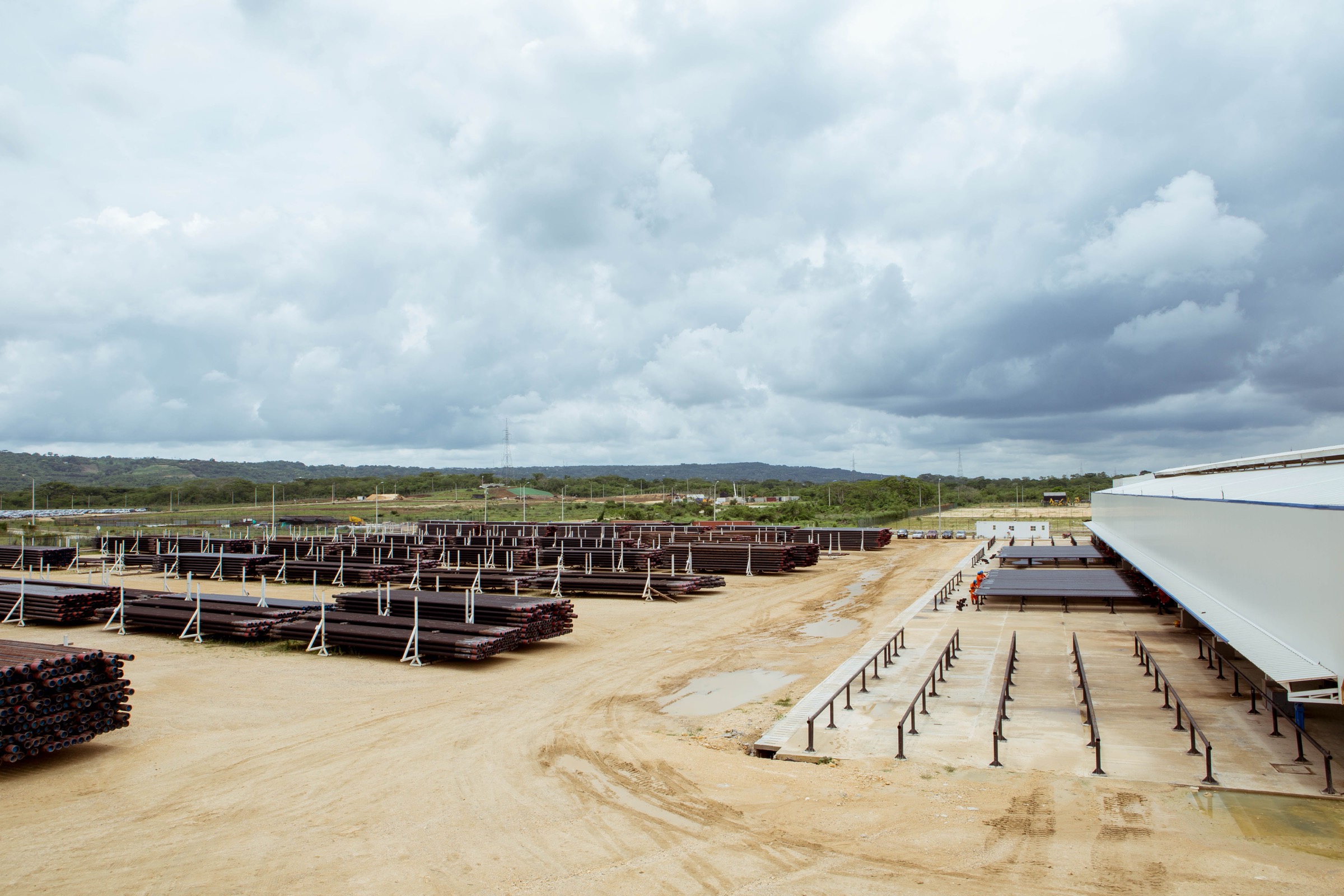

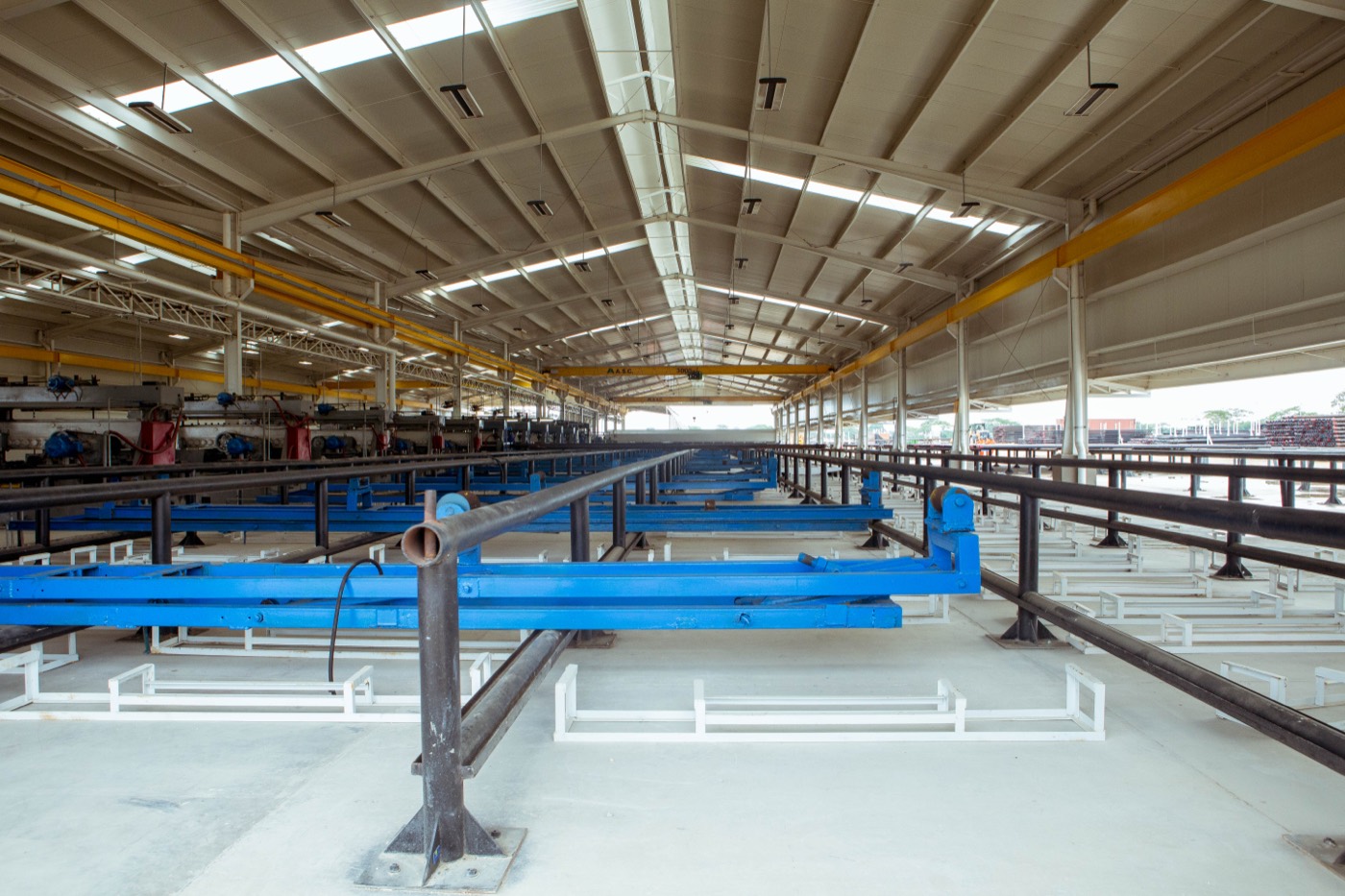

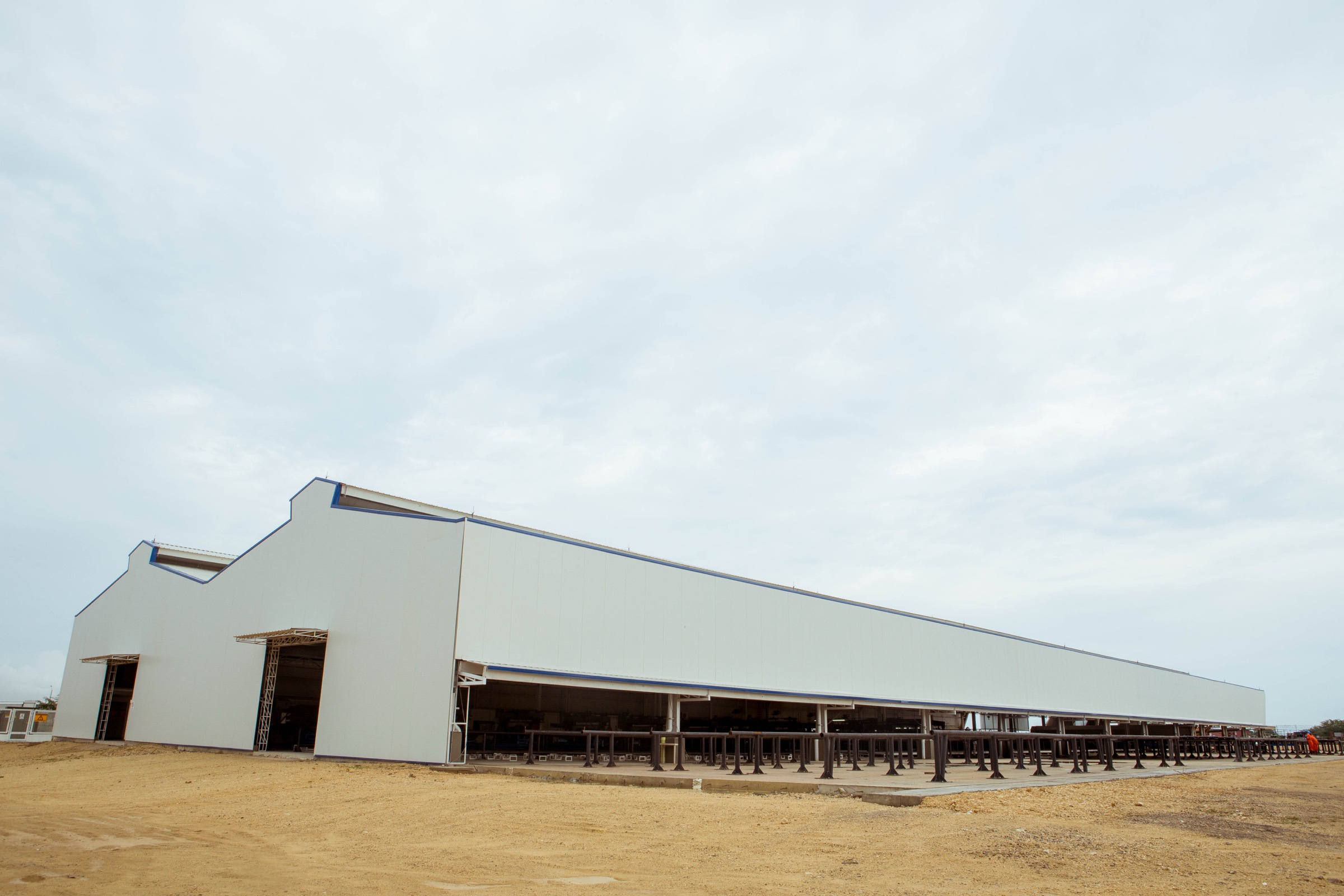

Slotting, perforating, wire wrapping, welding and inspection are done under one roof in El Tigre, Anzoátegui. The yard holds pipe before and after it is processed. Nothing is subcontracted.
- A
Slotting

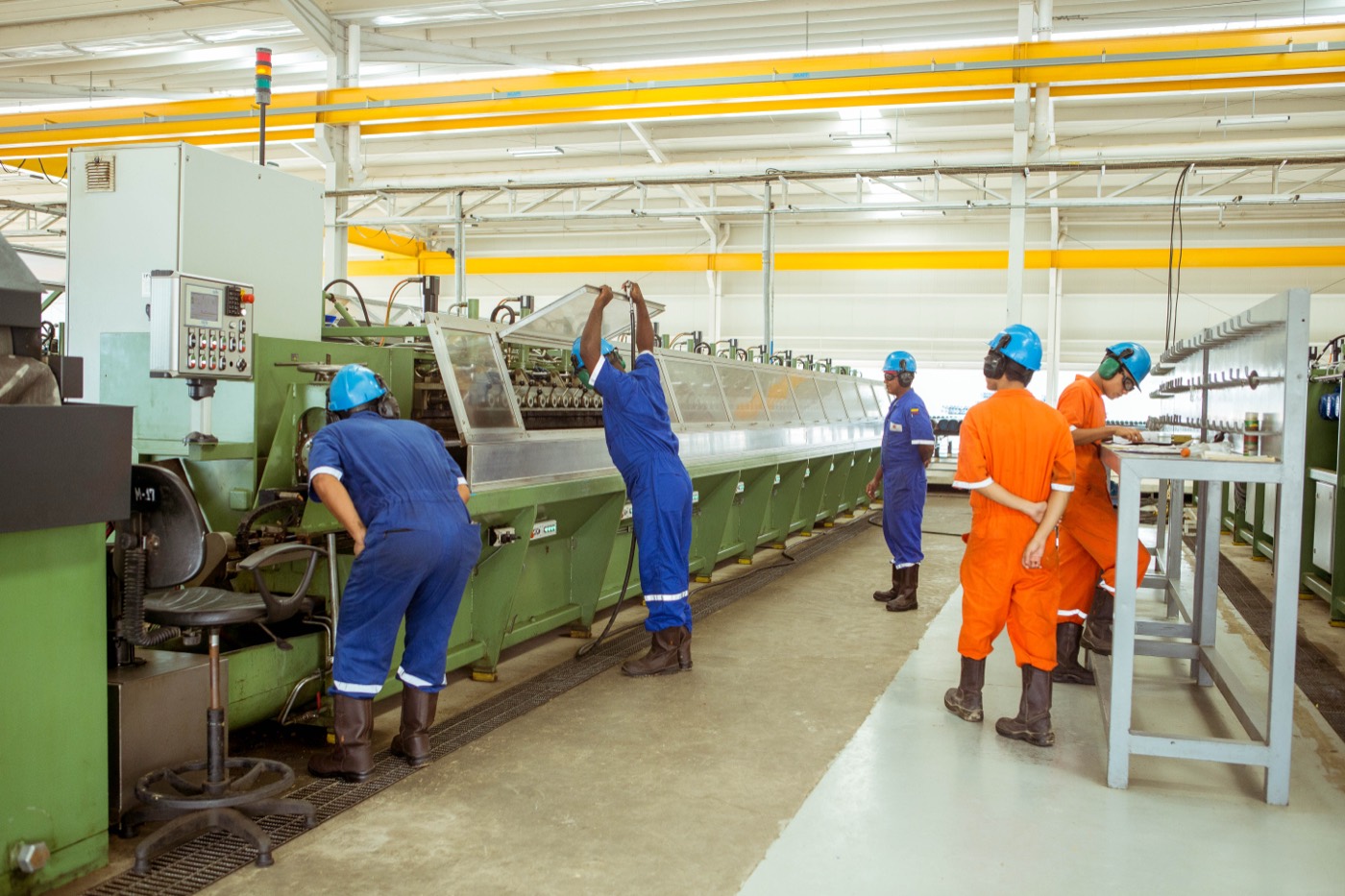

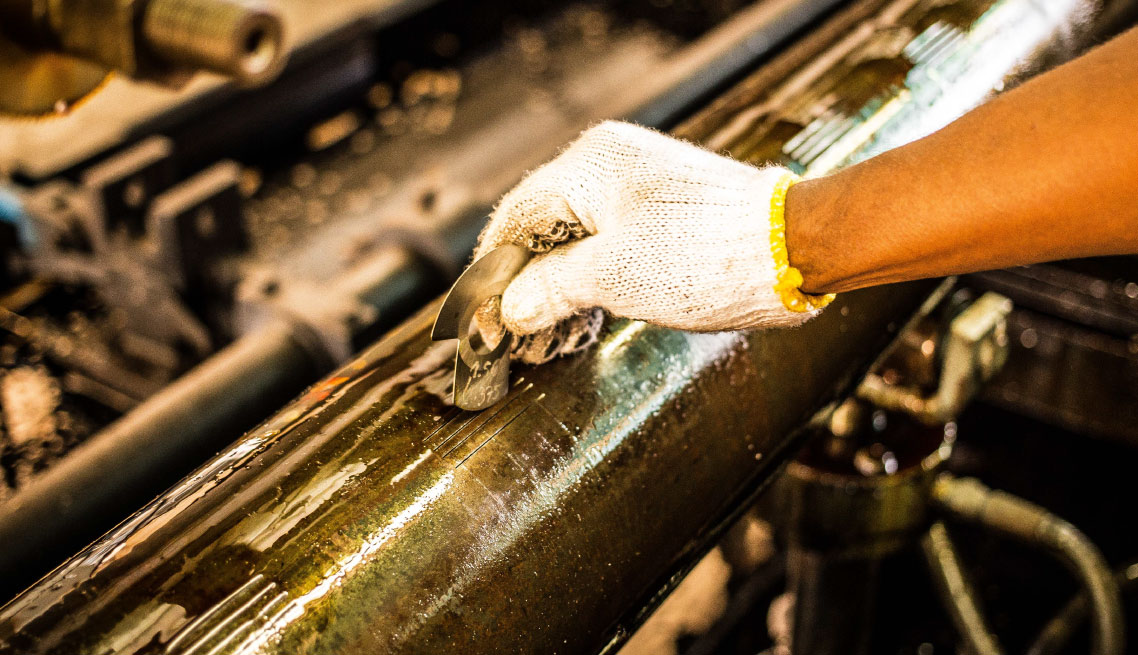

Gang-mounted circular saw lines cutting interrupted longitudinal slots. Slot width gauged on every joint.
- B
Perforating
Multi-spindle drilling lines for pipe from 1-1/16 in to 20 in and joints to 45 ft.
- C
Wire wrapping
Keystone wire wrapped and welded to 9-5/8 in and 40 ft, in stainless and high nickel alloys.
- D
Welding and assembly
Jacket welded to base pipe, end rings fitted, pre-packed dual-jacket screens built in house.
- E
Inspection
Slot and hole gauging, dimensional control and final inspection under ISO 9001. Records kept per joint.
- F
Logistics
Thread protection, bundling and load-out for trucking to the well site.
- Carbon steel
- API casing and tubing grades
- Stainless steel
- 304L and 316L wire and jacket
- High nickel
- Inconel 825 for corrosive and thermal service
ISO 9001, certified by Fondonorma and IQNet.
The acceptance criterion for every joint is the customer's drawing.
- 01
Certified system
ISO 9001, certified by Fondonorma in Venezuela and recognised abroad through IQNet.
- 02
Gauging on every joint
Slot width, hole diameter and wire aperture are gauged on every joint, not on a sample.
- 03
Material traceability
Base pipe and wire are tracked from receiving to dispatch. Mill certificates travel with the shipment.
- 04
Health, safety and environment
One quality, safety, health and environment policy, kept to Venezuelan law and to the audits our customers run.
The company started as a machine shop for the oil industry around El Tigre and moved into sand control one product line at a time.
- 1958
- Founded in El Tigre, Anzoátegui, as a machine shop for the oil industry
- 1970s
- Slotted pipe line in production
- 1990s
- Wire-wrapped screen line commissioned
- 2000s
- Perforated pipe line commissioned. ISO 9001 certification
- Today
- Third generation of the family. Supply relationships with Chevron and Tenaris
Between 100 and 150 people work at the plant. Engineers, technicians and machinists, and the third generation of the family that founded the company.
Customers include operators, pipe mills and pipe suppliers.
- 01
- 02
- 03Pipe Supply & Services
- 04PanelMet
Send the specification and we quote against it. We need the following:
- 01Casing or tubing size
- 02Slot width, hole pattern or screen aperture
- 03Joint length
- 04Quantity
- 05Delivery point
A casing programme, sieve analysis or drawing can be attached in place of the list.
